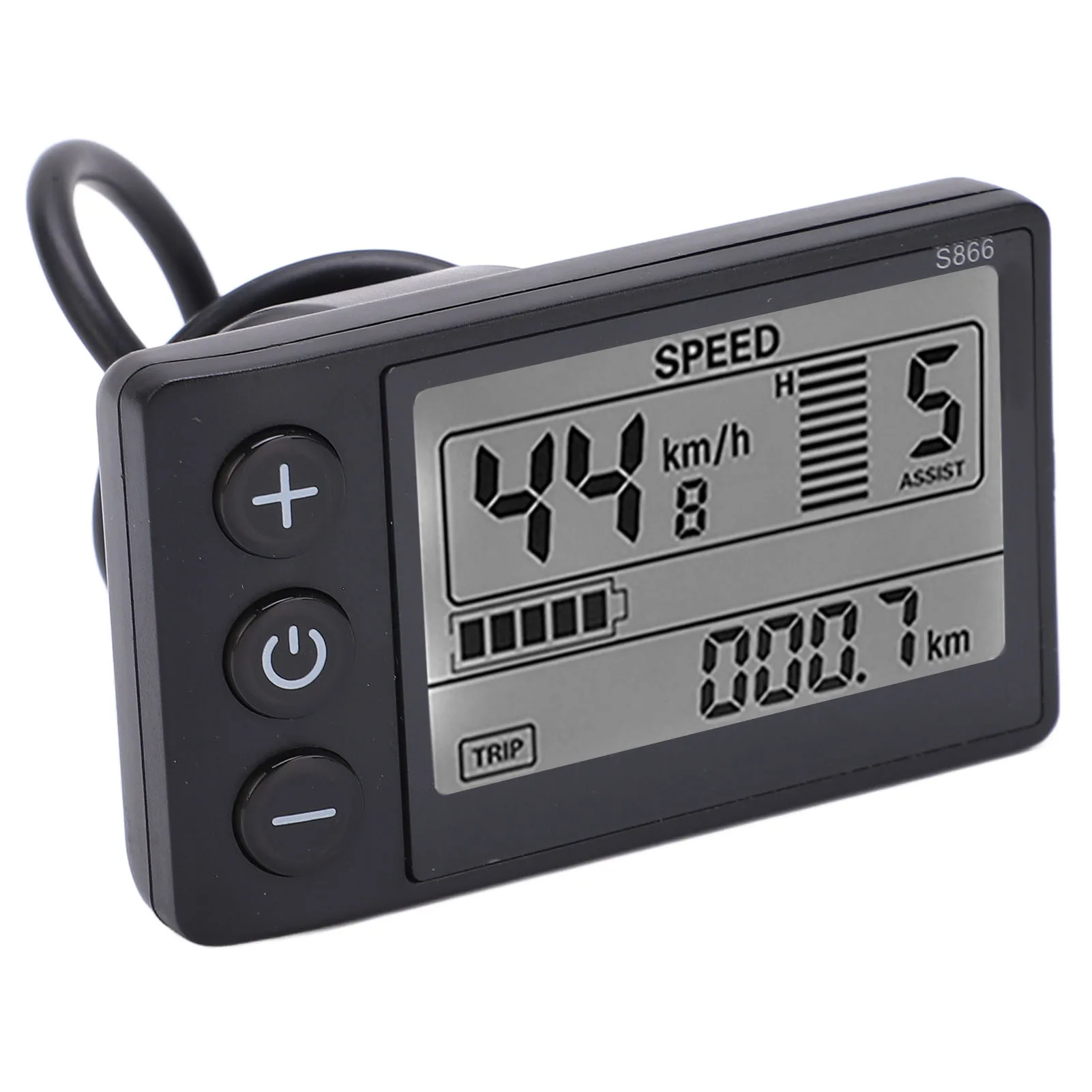

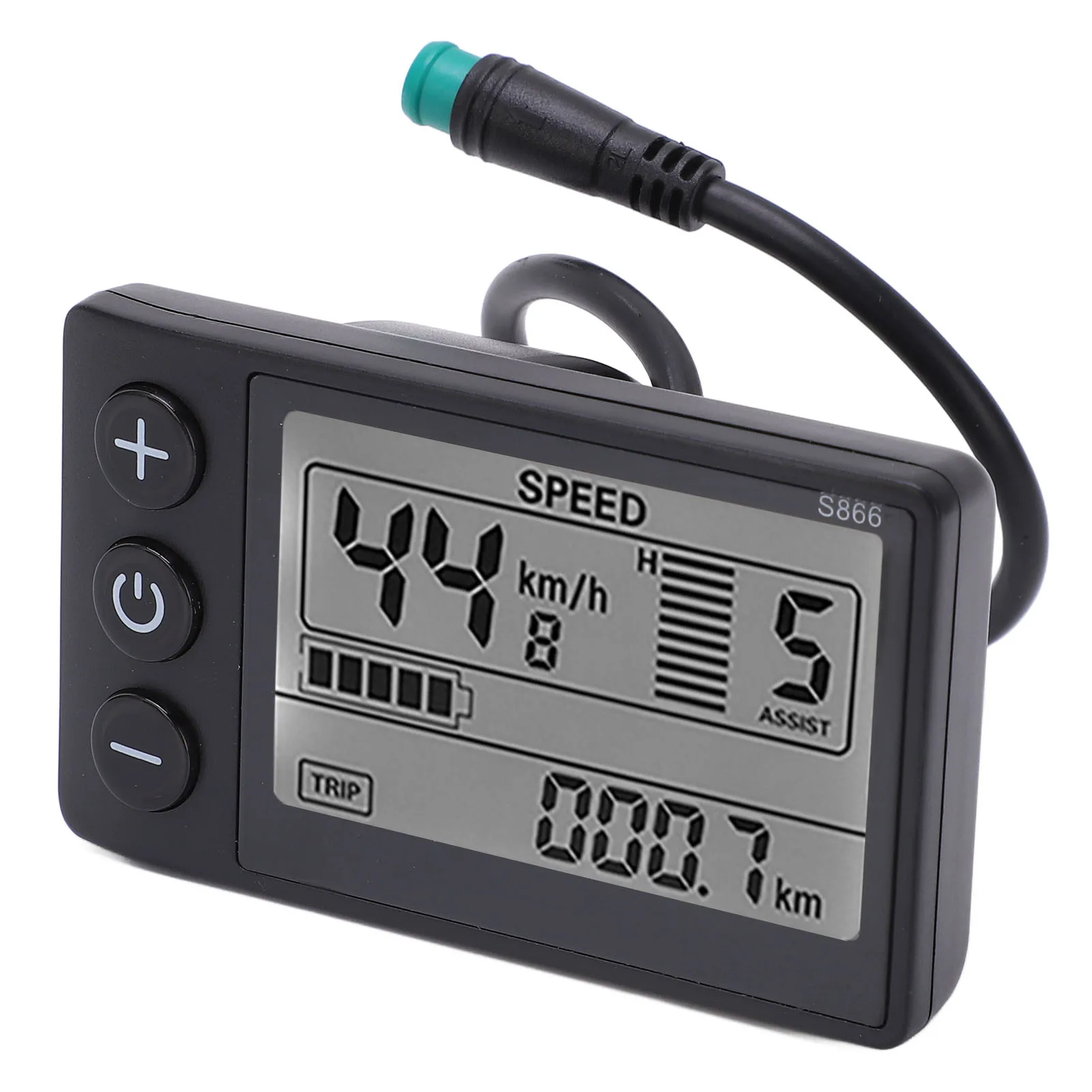

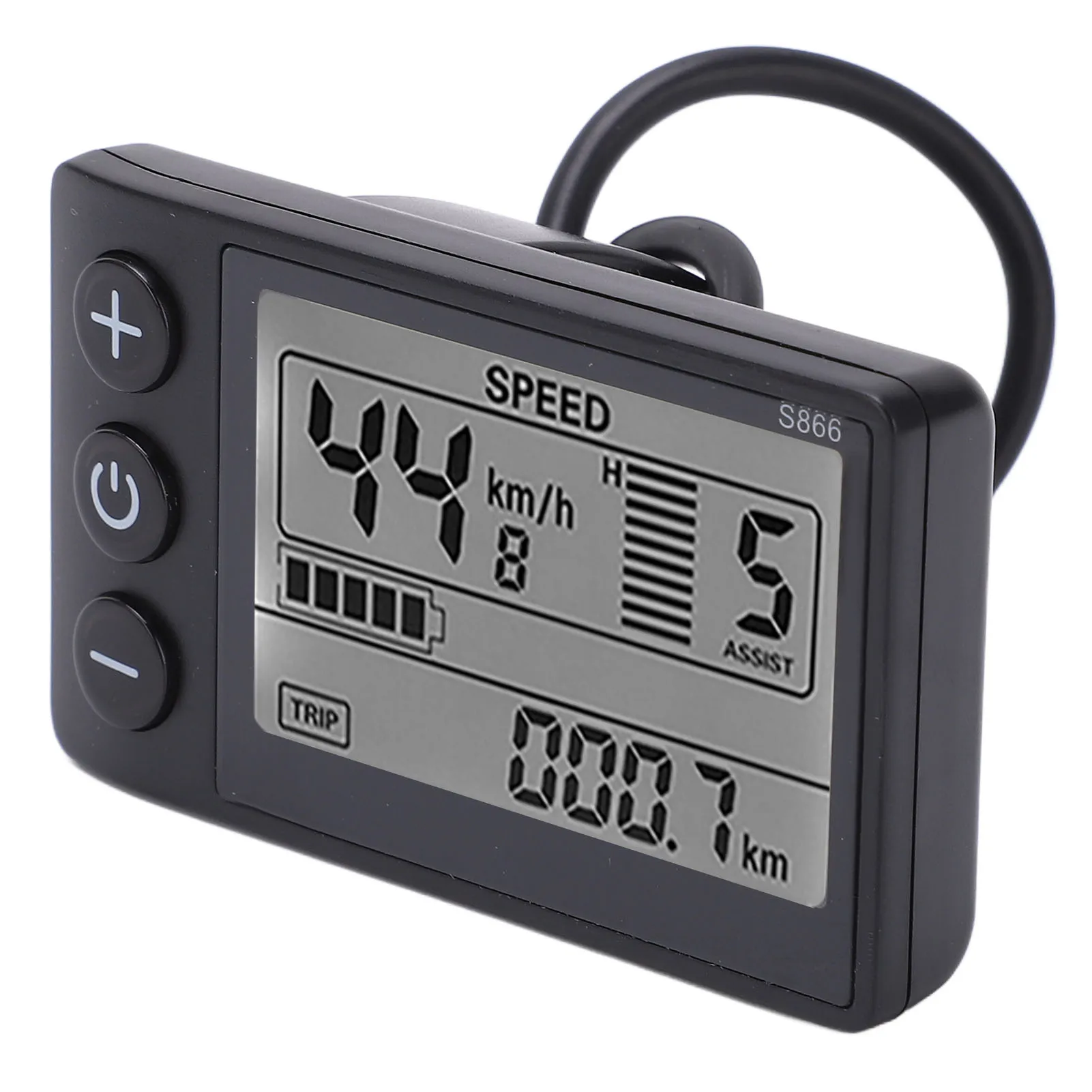

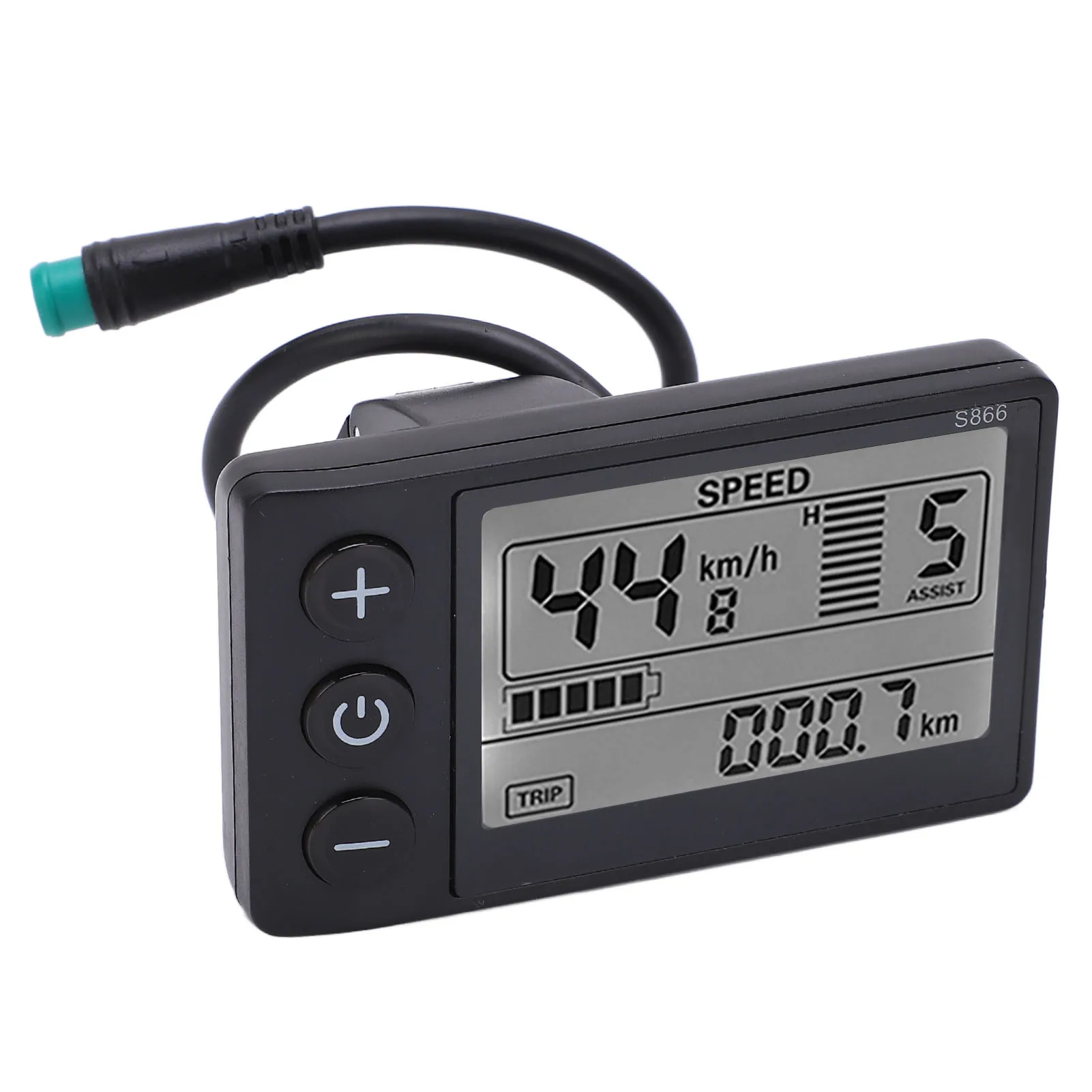

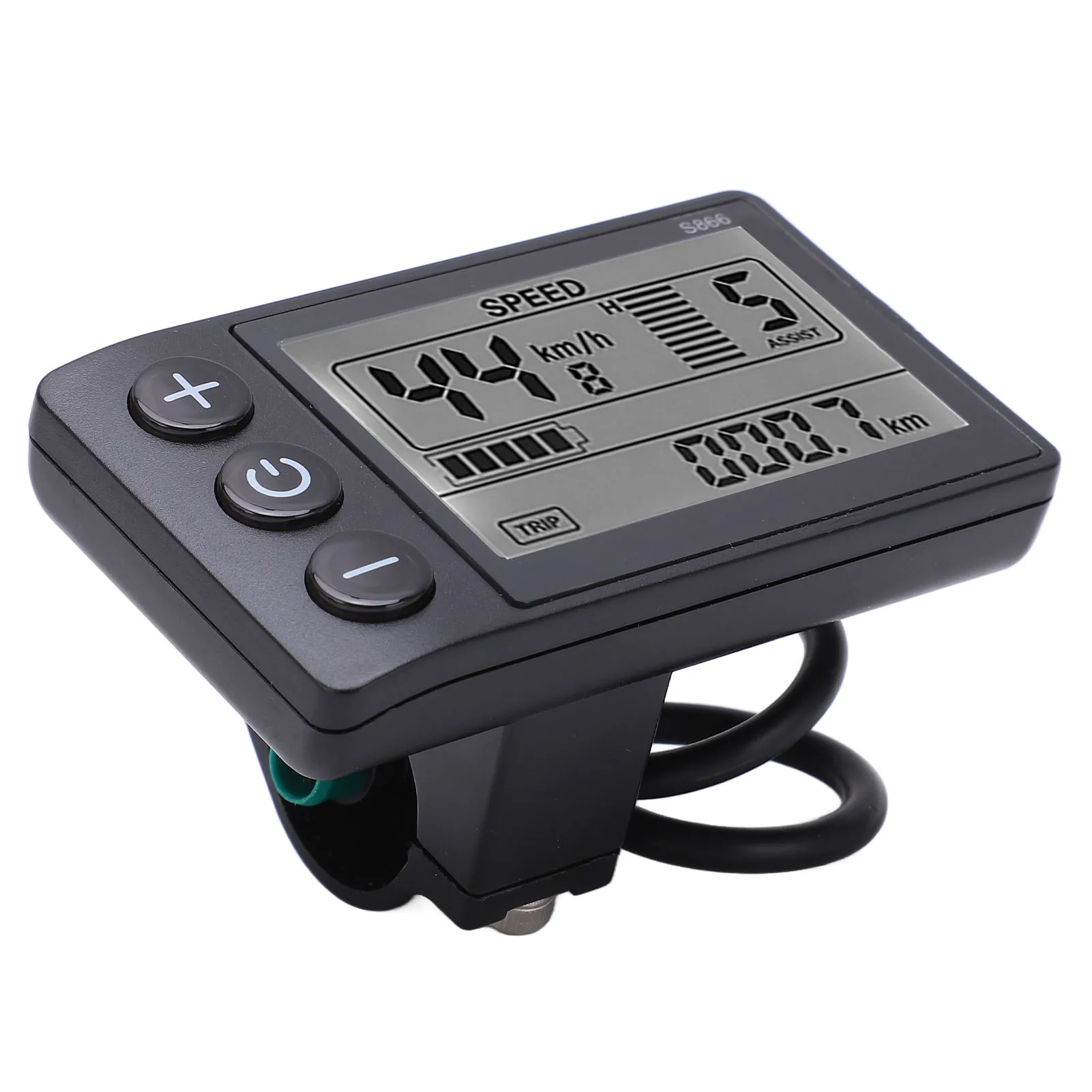

Electric S866 LCD Display Meter 24V 36V 48V Control Panel with Waterproof Plug

Feature:

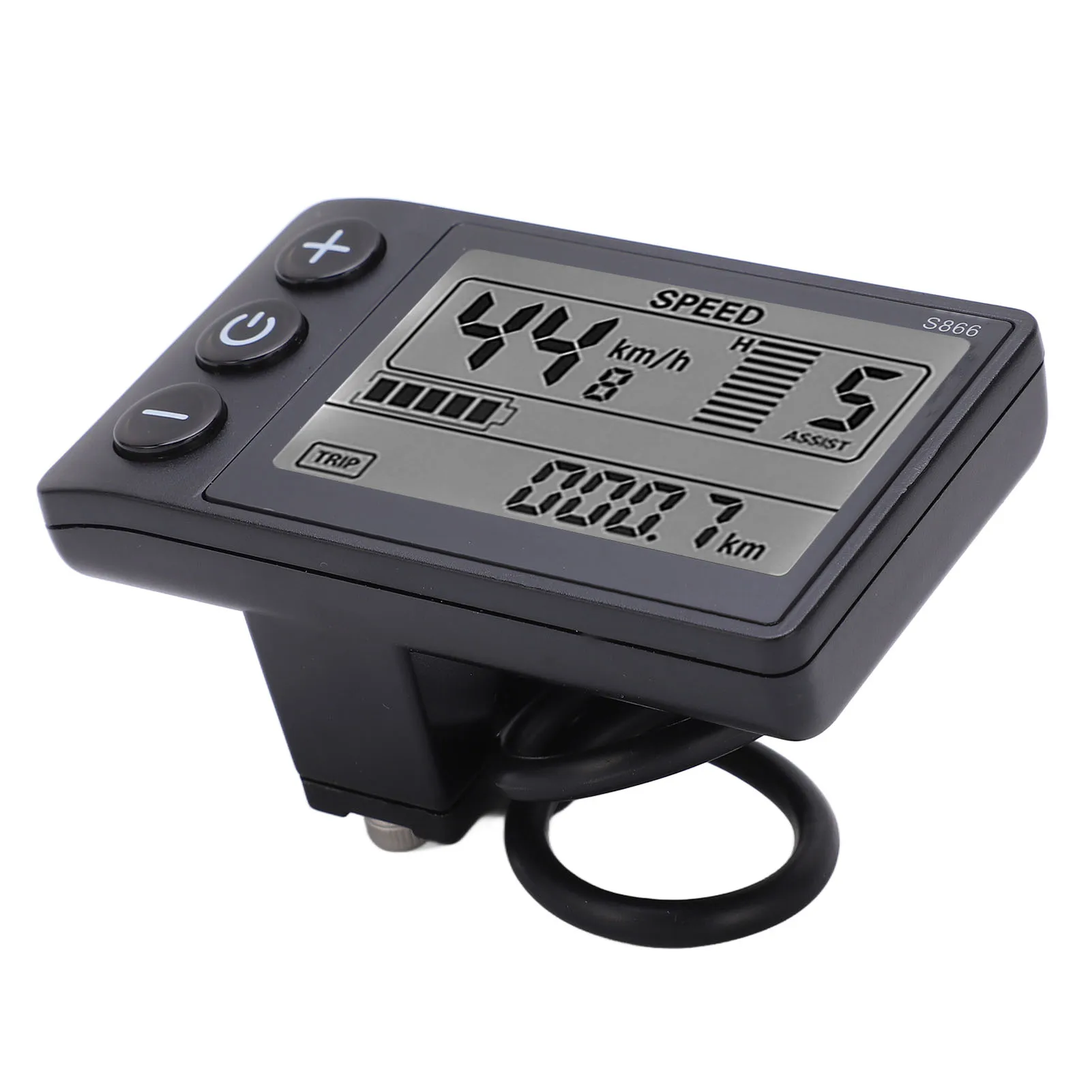

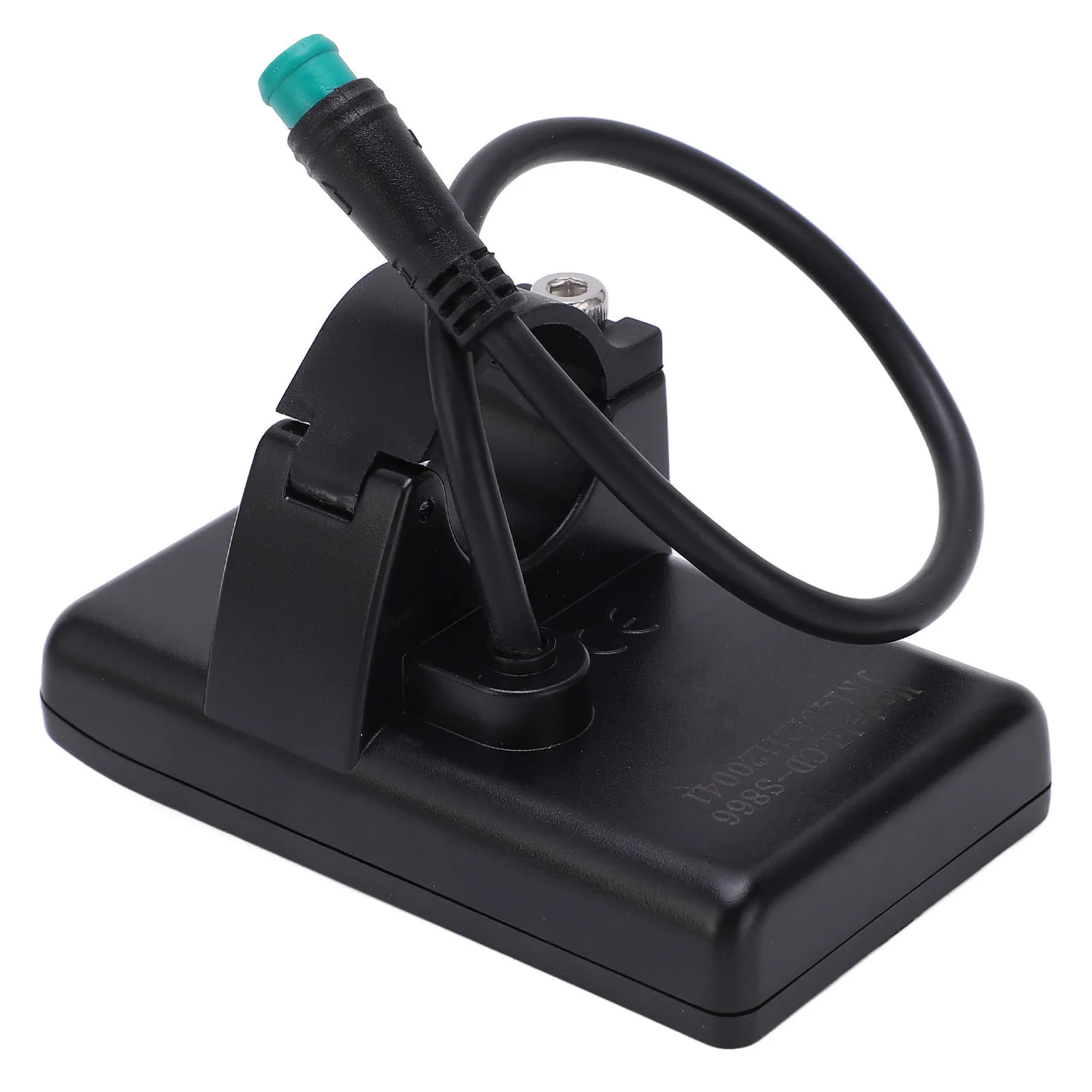

1. Wide Range of Uses: Easy to install and use, comes with LCD screen display bracket, suitable for 22.2mm/0.9in handlebars.
2. Material: LCD display is made of high quality ABS material and is lightweight, waterproof and , and long service life.
3. Simple : Easy to install and disassemble, without any difficult requirements even though you use it for the first time.
4. Large Screen: LCD display makes it easier for you to view the data on the panel, and the status is displayed on the large screen more intuitively.

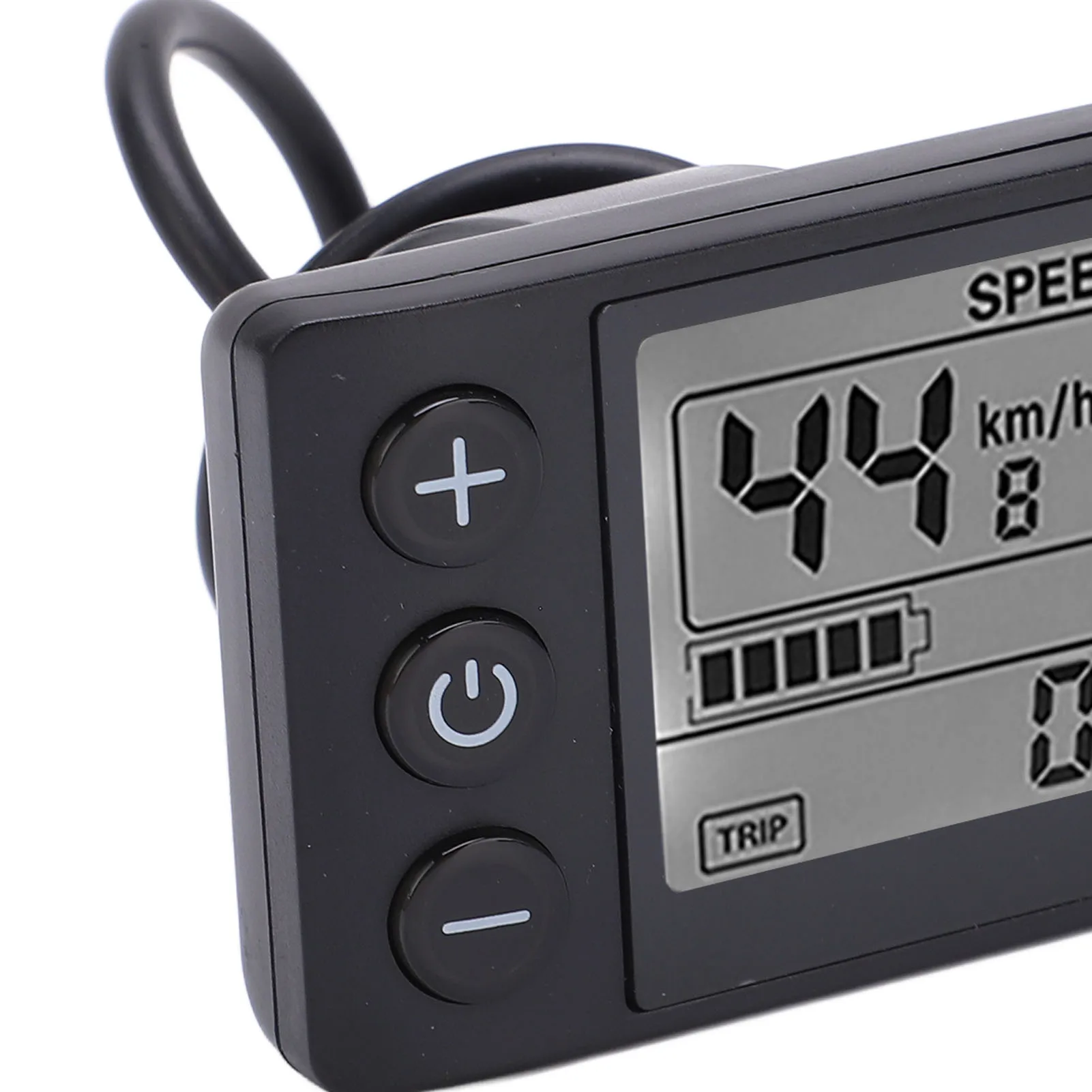

5. See Clearly: The backlight allows you to see the screen clearly even in the dark environment, and the key is fast and convenient.

Specification:

Item Type: S866 LCD Display
Material: ABS
Color: As Pictures Shown
Waterproof Grade: IP65
Communication Protocol: Communication Protocol No. 2
Matching Voltage: 24V 36V 48V
Weight: Approx.106g/3.7oz

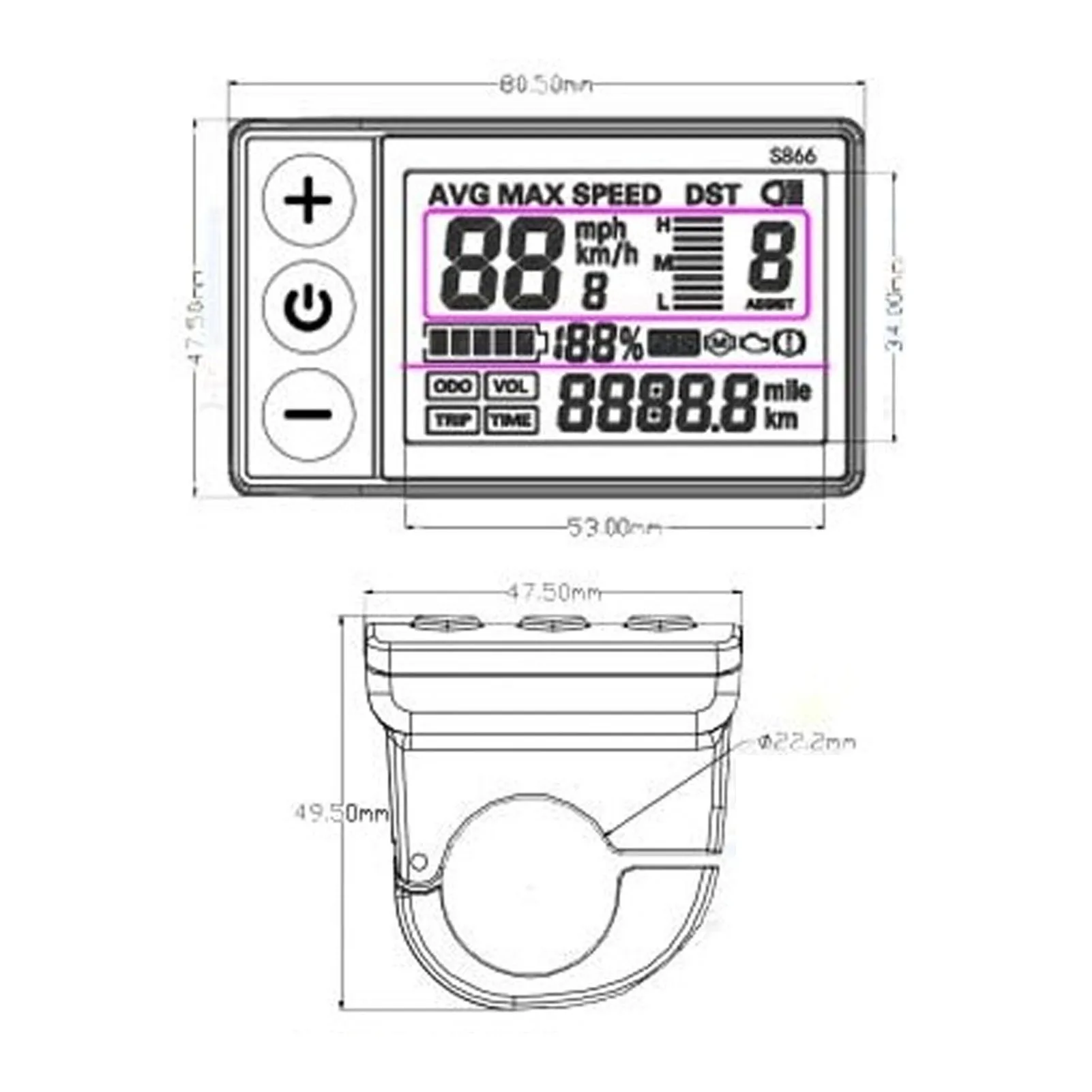

Bracket Diameter: Approx. 22.2mm/0.9in

Package List:

1 x S866 LCD Display

1 x Manual

Note:

Please confirm with the original manufacturer of the electric vehicle before purchase whether the model of the instrument and controller (S866), wiring definition (see the promotional picture), and communication protocol (communication protocol No. 2) are compatible. Otherwise, incompatibility may occur.

FAQ：

Q1: What is the communication protocol of the meter?

A: This model is No. 2 communication protocol.

Q2: How to deal with error E10?

A: 1. Check the ports where the meter and the controller are connected, there is no bad contact, plug and unplug it; 2. Is the meter equipped with other controllers, this is only compatible with the controller of the No.2 protocol, please pay attention to it.

Q3: What if I forget the password set by the meter?

A: The meter password needs to be reset.
